Your Guide to the Boat Anchor Size Chart

Getting the right size anchor for your boat isn't just a recommendation—it's one of the most important decisions you'll make for your safety on the water. A boat anchor size chart is your best friend here. These charts use your boat's length and displacement (its total weight) to give you a solid starting point for anchor weight.

An undersized anchor is a massive safety risk. You need enough weight to really dig into the seabed and hold fast, especially when the wind and currents kick up.

Why The Right Anchor Size Matters

Picking out an anchor isn't just about ticking a box on your gear list; it’s fundamental to safe boating. The right anchor gives you confidence, whether you're just dropping it for a quick swim or find yourself caught in some unexpected weather.

Get it wrong, and you risk dragging anchor. That’s a dangerous situation that puts your boat, your crew, and any other vessels nearby in serious jeopardy. Think of a good anchor chart as your first line of defense against that nightmare scenario.

Anchor size charts are pretty straightforward, matching anchor weight to the boat's length and weight to make sure it can hold properly. For most recreational boats between 15 and 40 feet, anchor weights can range anywhere from 11 to 44 pounds (5 to 20 kilograms).

As a general rule, a boat up to 20 feet might use an anchor around 5-7 kg. Step up to a boat between 20 and 30 feet, and you're looking at something in the 7-12 kg range. For larger boats over 30 feet, you'll start at 12 kg and go up from there, depending on the boat's total weight and where you'll be anchoring. For some deeper reading, the USC Sea Grant program has some great resources on vessel anchoring practices.

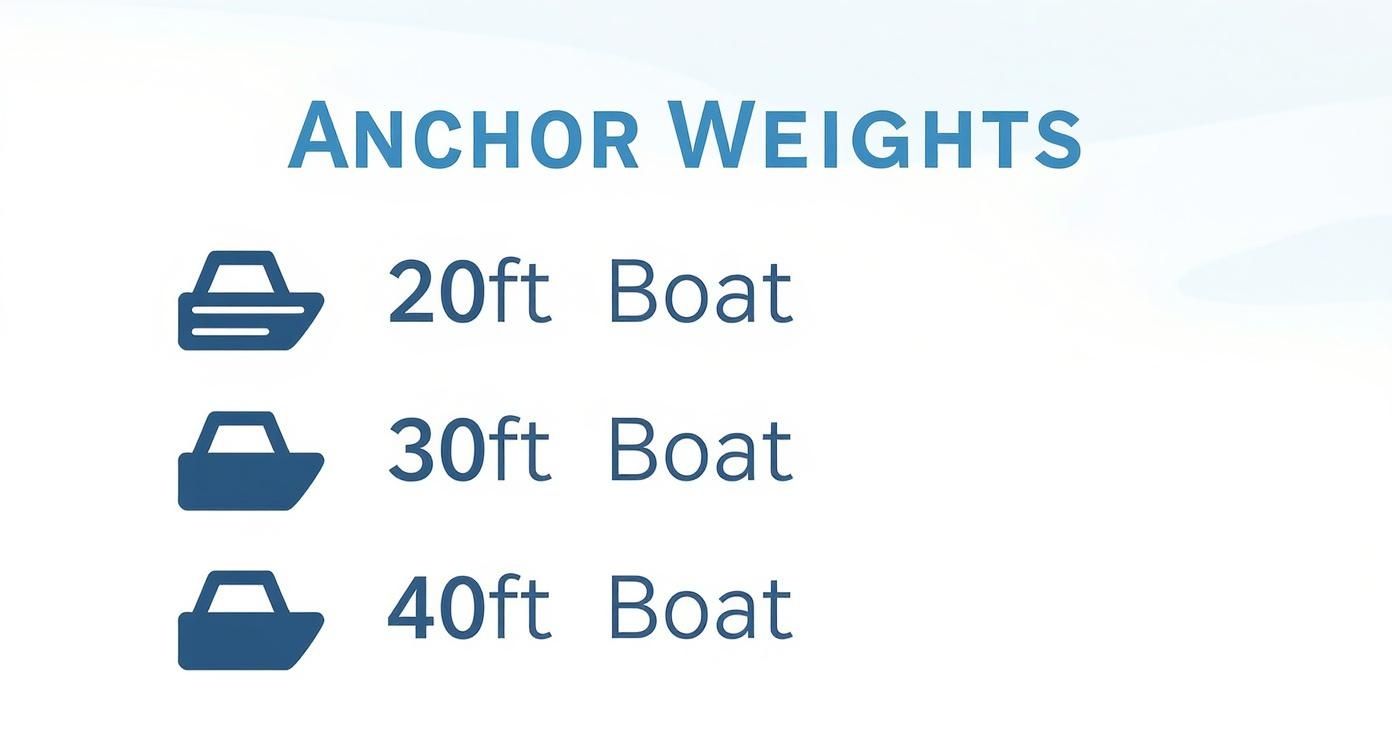

Quick Sizing Reference

To make it even simpler, this visual guide gives you a quick look at anchor weights for common boat sizes.





As you can see, the recommended anchor weight jumps up pretty quickly as the boat gets bigger. That's because larger vessels catch more wind and are pushed around by currents with much greater force.

This is just a starting point, of course. Your boat’s displacement and the specific type of anchor you choose will help you narrow down the perfect fit. And don't forget, the anchor is only as good as what's connecting it to your boat. You'll want to pair it with a top-quality rode, like a tough and abrasion-resistant Better Boat Anchor Line.

Anchor Weight Recommendations by Boat Length

To give you a more concrete idea, here’s a simplified table that breaks down anchor weight recommendations based on boat length for a couple of the most common anchor types.

Boat Length (ft)	Plow/Claw Anchor (lbs)	Danforth Style Anchor (lbs)
Up to 20'	13-15 lbs	5-9 lbs
21' - 27'	15-22 lbs	9-13 lbs
28' - 32'	22-35 lbs	13-18 lbs
33' - 40'	35-45 lbs	18-25 lbs
41' - 48'	45-60 lbs	25-43 lbs

Remember, this chart assumes average conditions. If you frequently anchor in rough seas or high winds, always size up. It’s far better to have an anchor that’s a little too heavy than one that’s not heavy enough when you really need it.

How to Read and Interpret an Anchor Chart





Anchor charts are a fantastic starting point for sizing your gear, but knowing how to read them correctly is the key to anchoring with confidence. It's easy to just find your boat's length and pick the corresponding anchor, but that's only part of the story. To really nail it, you have to look past length and understand the other forces at play.

The single most important factor is your boat's displacement. We're not talking about its length from bow to stern, but its actual, real-world weight when loaded up with fuel, water, crew, and all your gear. A heavier boat carries a lot more momentum, which means it puts much greater strain on your anchor when the wind and current pick up.

Moving Beyond Length

Let's look at a real-world example. Imagine two different boats that are both 35 feet long.

• Scenario 1: A lightweight 35-foot day boat might tip the scales at around 12,000 lbs.
• Scenario 2: A heavy, offshore-ready 35-foot cruiser, loaded for a trip, could easily weigh 18,000 lbs or more.

Even though they're the same length, that cruiser is putting a whopping 50% more strain on its anchor and rode. If you just went by the boat's length on the chart, you'd be dangerously undersized for the heavier vessel. This is why you should always start with displacement when you're looking at an anchor chart.

Expert Insight: It helps to think of an anchor chart as a set of expert guidelines, not a book of rigid rules. The final call always comes down to you, your specific boat, and the conditions you expect to face.

That's why just picking a weight off a chart isn't enough. You have to understand how an anchor actually does its job. The chart gives you the "what," but grasping the "why" ensures you're making the safest choice.

To really get a handle on the physics involved, check out our guide on how an anchor actually works and grips the seabed. This knowledge is the foundation for factoring in other critical pieces of the puzzle, like anchor design and the type of bottom you're dropping onto.

Understanding How Anchor Design Impacts Sizing





While any boat anchor size chart will lean heavily on weight, the anchor’s actual design is just as critical. The shape of an anchor is what determines how it bites into the seabed, and that dictates its holding power—the amount of force it can take before it starts dragging. It’s a classic mistake to think two anchors of the same weight will perform the same; if their designs are different, their performance can be worlds apart.

This is all because each style of anchor is engineered for specific bottom conditions. Some are champs at digging into soft mud and sand, while others are built to penetrate harder bottoms like clay or hook onto rocks. Getting a handle on these differences is the key to choosing an anchor that offers real security, not just dead weight on the end of your chain.

Common Anchor Types and Their Characteristics

The most common anchor designs each have their own quirks, strengths, and weaknesses that directly affect the size you'll need. A really efficient, modern design might let you get away with an anchor that’s lighter than a chart suggests. On the other hand, using an anchor that's a poor match for your local seabed might force you to size up considerably.

Here's a quick rundown of the main players:

• Fluke-Style (Danforth) Anchors: These guys have big, sharp flukes that are superstars in soft sand or mud. They deliver exceptional holding power for their weight in these conditions, but they're pretty much useless on rocky or grassy bottoms where they just can't get a grip.

• Plow and Claw Anchors: Plow anchors (like the classic CQR) and claw anchors (like the Bruce) are the all-rounders of the anchoring world. They’re designed to literally plow into the bottom and have a good knack for resetting themselves if they happen to break free, making them a reliable choice for boaters who anchor in a variety of seabeds.

• Modern Scoop Anchors: The new generation of anchors, like those from Rocna or Mantus, feature a roll bar and a super-sharp, weighted tip. This design forces them to orient correctly and dig in like a beast across almost any bottom, from the softest mud to hard-packed clay. Their smart engineering often gives them the highest holding power per pound you can get.

It’s no surprise that the global boat anchor market was valued at around $1.5 billion in 2024. All that money is driving serious innovation in these designs as brands fight to create the anchor with the best bite and holding power.

Anchor Type Performance Comparison

To make it easier to see how they stack up, this table compares the most common anchor types and their ideal uses. Think of this as your cheat sheet for matching a design to your boating environment.

Anchor Type	Best Seabed	Holding Power (per lb)	Sizing Consideration
Fluke (Danforth)	Sand, Mud	Very High (in soft bottoms)	Can be sized down for ideal conditions; must size up significantly for mixed or hard bottoms.
Plow (CQR, Delta)	Sand, Clay, Mud	Good to Very Good	A solid baseline. Sizing charts are often based on this versatile style.
Claw (Bruce)	Sand, Rock, Mud	Good	Performs well in various bottoms but may have slightly less holding power than a comparable plow.
Modern Scoop (Rocna, Mantus)	Most Types (versatile)	Exceptional	Often allows for downsizing one size from chart recommendations due to superior efficiency.

Ultimately, the goal is to match the anchor's design to where you'll be dropping it most often. A lightweight fluke anchor can easily out-hold a much heavier plow anchor in soft mud, but it becomes a liability on a rocky bottom where the plow would shine.

For a much deeper dive into how these designs compare, check out our detailed guide on anchor styles, weights, and materials. It’s the perfect resource for fine-tuning your choice, ensuring the anchor you pick from a size chart is the safest and most effective one for your boat.

Matching Your Anchor to Seabed and Weather Conditions





Any anchor size chart is an excellent starting point, but out on the water, you're dealing with real-world conditions that call for a more hands-on approach. The holding power of your anchor can change in a heartbeat based on what’s on the bottom and what the sky is doing.

An anchor that digs in perfectly in firm sand might just skate right over a rocky bottom or get hopelessly fouled in thick weeds. Figuring out the seabed is the first big step in adapting a chart's recommendations to your reality. You can get a good idea from nautical charts, which often mark the bottom type, or simply by seeing what comes up with your anchor.

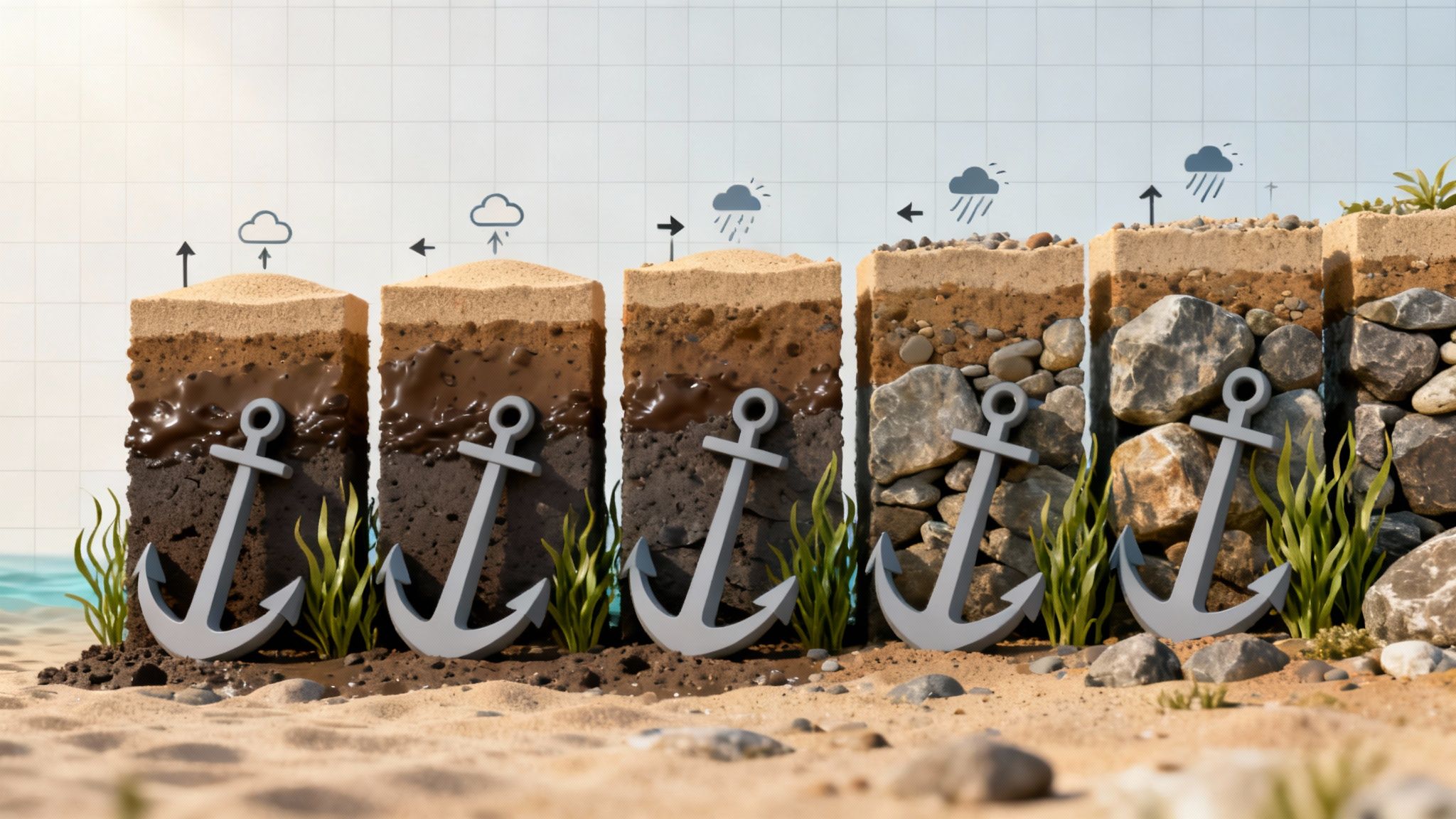

Assessing Different Seabed Types

Every type of seabed presents its own set of challenges and really favors certain anchor designs. Your job is to match your gear to the ground you’re trying to grab.

• Sand and Mud: This is the good stuff. Generally, these are the best holding grounds you can ask for. Most anchor types, particularly fluke and the newer scoop designs, dig in deep and hold on tight.
• Rock and Coral: In this scenario, the goal is to snag, not dig. A plow or a claw anchor can often hook on effectively, but you run a high risk of the anchor getting permanently stuck.
• Clay: Hard-packed clay can be tough for lighter anchors to bite into. You’ll need the punch of a heavier plow or a sharp-tipped scoop anchor to really break through that surface.
• Weed and Grass: This is easily the most frustrating bottom type. An anchor can either fail to reach the seabed at all or just pull up a giant, useless mat of vegetation, losing all its grip. A heavy, sharp anchor is your best bet to slice through the green stuff and find solid ground underneath.

Sizing Up for Weather Conditions

Nasty weather is the ultimate stress test for your entire anchoring system. High winds put an incredible amount of force on your boat, and the standard-sized anchor from the chart might not be enough to keep you put. This force gets magnified by your boat’s windage—the total surface area of your hull, cabin, and rigging that the wind can push against.

Here's a critical rule of thumb: go up at least one anchor size from the chart's recommendation if you even think you'll see winds over 30 knots.

That extra weight and size give you a crucial safety margin. It ensures the anchor has enough mass to stay buried and fight the increased load. When a storm is on the horizon, being over-anchored is always the right call. And don't forget, a tough rode, like our durable Better Boat anchor line, is just as important for handling that extra strain.

Connecting Your Anchor with the Right Rode and Scope

Even the perfect anchor is useless if it’s not connected to your boat. That connection, called the rode, is every bit as critical as the anchor itself. Picking the right one is a big deal.

https://www.youtube.com/embed/ByTbK0wwJw8

You've got a few options for your rode. It can be all chain, a mix of rope and chain, or even all rope if you have a small boat and only anchor in calm spots.

Each setup has its pros and cons. An all-chain rode is the heavyweight champion—it's tough as nails, and its sheer weight helps the anchor dig in and stay put. The downside? It's expensive and adds a lot of weight right in the bow.

For most of us recreational boaters, a combination rode is the sweet spot. This system uses a length of heavy chain connected to the anchor (for chafe resistance on the bottom) which is then attached to a much longer nylon rope.

Rode Selection and Scope Calculation

A combination rode gives you a fantastic balance of performance, cost, and weight savings. The key is using a tough, shock-absorbing rope like the Better Boat Anchor Line, which is built to handle the immense stress of anchoring.

Of course, the anchor is just one piece of the puzzle; the type and length of chain you use matter immensely. For a deeper dive, check out these expert tips on selecting the right boat anchor and chain to really dial in your ground tackle.

No matter what type of rode you have, you have to let out the right amount of it. This is called scope, and it's absolutely crucial for a secure set. Scope is simply the ratio of the rode's length to the vertical distance from your bow down to the seabed. The gold standard for a secure hold is a scope of 7:1.

Key Takeaway: A 7:1 scope means for every one foot of depth, you let out seven feet of rode. This angle ensures you're pulling horizontally on the anchor, keeping it dug firmly into the bottom. Pulling up on it is a surefire way to break it free.

Putting Scope into Practice

Figuring out the right scope isn't complicated, but you have to remember one key detail: the depth isn't just the number on your depth sounder. You have to add the height of your bow off the water (your freeboard).

Here’s the simple formula:
(Water Depth + Bow Height) x Scope Ratio = Total Rode to Let Out

Let's run through an example. Say you're anchoring in 20 feet of water and your bow is 5 feet off the surface. Your total vertical distance is 25 feet. For a solid 7:1 scope, you'll need to pay out 175 feet of rode (25 x 7 = 175). Easy.

Understanding these fundamentals shows why commercial ships operate on a different scale. Navy and merchant vessels might carry up to 1000 feet of chain for a single anchor because the weight and catenary (the sag) of that much chain are essential for them to moor safely. While you don't need quite that much, our guide on how much anchor chain you need will help you figure out the perfect length for your boat's combination rode.

Maintaining Your Complete Anchoring System

Picking the right anchor from a size chart is a great start, but it's only one piece of the puzzle. A truly bulletproof anchoring setup relies on every single component working together, from the shackle on the anchor shank all the way back to the cleat on your deck. Regular maintenance isn’t just a nice-to-do chore; it’s a critical safety habit that ensures your gear won’t let you down when you need it most.

Think of your anchor as just one player on a team. It can’t do its job without key accessories like swivels, shackles, and snubbers. Swivels are a game-changer, preventing your anchor line from getting twisted up as the boat dances in the wind and current.

Shackles provide the muscle—strong, secure connections you can bet your boat on. And a snubber, that short piece of stretchy rope, is your system's shock absorber, soaking up jarring loads in rough seas to protect your boat and keep the anchor dug in.

Your Essential Maintenance Checklist

Getting into a routine of regular inspections will keep your entire system ready for action. Ignoring these simple checks can lead to catastrophic failure at the worst possible time. I make it a habit to give my whole setup a thorough once-over at the beginning of the season and after any particularly nasty weather.

Here’s a practical checklist to get you started:

• Inspect Rope Rodes: Run your hands along the entire length of any nylon rope, feeling for chafe, frays, or signs of sun damage. If you find sections that feel stiff or brittle, it’s time for a replacement. A high-quality line like the Better Boat Anchor Line is designed to stand up to abrasion and the elements.
• Examine Chain Links: Give your chain a close look for any rust or corrosion. Pay special attention to the welds on each link, as this is a notorious weak point. You might be able to get more life out of it with a re-galvanizing job, but if you see significant corrosion, don't risk it—replace it.
• Check All Connections: Make sure your shackle pins are properly "moused" or seized with stainless steel wire so they can't vibrate loose. Give any swivels a spin to ensure they turn freely and aren’t showing signs of excessive wear and tear.

A well-maintained anchor system is a complete system. Every component, from the anchor to the cleat, must be in perfect working order to provide the security you depend on.

For a deeper dive into how all these parts work together, check out our complete guide to building a reliable boat anchor system. Keeping your ground tackle in prime condition is the final, crucial step to anchoring with total confidence.

Common Questions About Anchor Sizing

Even with the best anchor size chart in hand, there are always a few lingering questions. That's perfectly normal. Getting your ground tackle dialed in just right is a process, and it’s always smart to get these details sorted out before you’re actually out on the water relying on it.

Think of this as the real-world advice that bridges the gap between the chart and the anchorage. We'll tackle the most common things boaters ask to clear up any confusion and get you anchoring with confidence.

Should I Choose a Heavier Anchor Than the Chart Recommends?

Yes, you absolutely should. If you find yourself stuck between two sizes on a chart, always—and I mean always—go with the larger, heavier option.

That little bit of extra weight is a small price to pay for the huge boost in peace of mind you'll get. A bigger anchor gives you a much wider margin of safety, which is invaluable if you ever find yourself caught in building weather, a strong current, or trying to set your hook in notoriously tricky bottoms like rock or dense seagrass.

How Much Does Boat Displacement Affect Anchor Size?

Boat displacement—your boat’s total weight when it's loaded up with fuel, water, and gear—is a much bigger deal than its length. It's really the most critical number to consider. A heavy, full-keel cruiser is going to put way more strain on its anchor than a light, zippy performance boat of the exact same length. It's just simple physics.

Make sure you're using your boat's fully loaded displacement as your starting point. The anchor you pick needs to be rated to handle that weight, plain and simple. That's how you guarantee maximum holding power when you need it most.

An anchor’s job is to manage forces. A heavier boat generates much larger forces, so it demands a more powerful anchor to stay put. Ignoring displacement is one of the most common and dangerous mistakes in anchor sizing.

What Is the Difference Between Holding Power and Anchor Weight?

This is a great question. Anchor weight is just what it says on the tin—how much it weighs on a scale. Holding power, on the other hand, is the real measure of performance. It’s the maximum amount of force an anchor can take before it pulls free and starts dragging.

Modern anchor designs are engineered to maximize this holding-power-to-weight ratio. That's why a newer, lighter scoop-style anchor can often outperform a much heavier, old-school design. It's not about being a dead weight on the bottom; it's about smart design that helps the anchor dig in deep and refuse to let go.

---
