How to Repair Cracked Fiberglass a Pro's Guide

Before you even think about mixing resin or grabbing a grinder, you need to play detective. Getting the diagnosis right is the single most important part of any fiberglass repair. If you misread the signs, you're setting yourself up for a fix that will fail—and probably at the worst possible time.

Not all cracks are created equal. One might just be an ugly surface flaw, while another could be a serious threat to your boat's integrity. Figuring out which is which will determine your entire plan of attack.

Diagnosing Your Fiberglass Damage Correctly

The first step is always to figure out what kind of damage you're looking at. Is it just skin deep, or has it penetrated into the boat's bones? This is the fundamental difference between cosmetic and structural damage.

Cosmetic vs Structural Cracks

You'll often see gelcoat crazing, which looks like a network of fine, shallow "spider cracks." Annoying, yes, but usually just cosmetic. These cracks are almost always confined to the thick, brittle outer gelcoat layer and don't actually reach the fiberglass laminate underneath. They pop up in high-stress areas, like near cleats or around stanchions, where the hull flexes.

A structural crack, on the other hand, is a much bigger deal. These are typically deeper, singular lines that cut right through the gelcoat and into the fiberglass laminate itself. If you spot any discoloration, like a dark line running down the crack, it's a red flag. That means water has already started to seep in, which can compromise the core material.

Pro Tip: A quick way to get a feel for the depth is the fingernail test. Run your fingernail across the crack. If it just barely catches, you're likely looking at a gelcoat issue. If your nail sinks into a noticeable groove, you’ve probably got a structural problem on your hands.

The All-Important Tap Test

Sometimes the most dangerous damage is the kind you can't even see. Delamination is a sneaky problem where layers of fiberglass separate from each other or from the core material, creating hidden voids. This can happen after an impact that didn't even break the surface.

This is where the classic "tap test" comes in. It's low-tech but incredibly effective.

• Grab a small mallet or just use the plastic handle of a screwdriver.
• Lightly tap the area around the crack and listen closely.
• You're listening for a change in sound.

A solid, sharp "tap" tells you the laminate is healthy and well-bonded. But if you hear a dull, hollow "thud," you've just found a delaminated area. That spot is significantly weaker and has to be addressed, even if the surface looks perfectly fine.

The marine fiberglass resin market is booming—projected to hit USD 2.86 billion by 2025—which shows how vital these materials are to keeping our vessels safe and valuable. Using the right waterproof, oil-resistant resins is essential for protecting boats from UV rays and saltwater corrosion. You can learn more about the growing market for marine repair kits to see how the industry is focused on long-term structural health.

Location and Cause Matter

Finally, take a step back and look at the bigger picture. Where is the crack, and what could have caused it? A random crack on a flat deck panel is a different story from one radiating out from the corner of a window.

• Stress Cracks: These often show up in starburst patterns around fittings, in sharp corners, or anywhere the hull experiences concentrated flexing. They're a sign of a high-stress point.
• Impact Cracks: If you bumped a dock or hit some debris, you'll probably see a "bullseye" pattern with cracks shooting outward from a central point of damage.

Understanding the root cause is critical. If you just patch up a stress crack without reinforcing the underlying area to handle the flex, you can bet that crack will be back. A proper diagnosis isn't just about seeing the damage—it's about understanding the story your boat is trying to tell you.

Building Your Fiberglass Repair Toolkit

Walking into a marine supply shop without a list is a surefire way to empty your wallet on things you don't need. To get the job done right, you need the right gear—nothing more, nothing less. Pulling your toolkit together beforehand saves you cash and prevents those maddening mid-project runs to the store.

Your first priority, before anything else, is safety. This isn't the place to cut corners. Working with resins and grinding tools kicks up dust and fumes that you absolutely want no part of.

Essential Safety Gear

Before you even think about grinding down fiberglass or popping open a can of resin, you need to gear up. The chemicals and dust are serious business, so treat them that way.

• Respirator with Organic Vapor Cartridges: A simple dust mask won't cut it. You need a proper respirator designed to filter out the volatile organic compounds (VOCs) that resins release.
• Safety Goggles or a Full Face Shield: Goggles are good, but a full face shield is better. It'll protect you from chemical splashes and the inevitable flying debris from the grinder.
• Chemical-Resistant Gloves: Forget standard latex gloves; they’ll dissolve in minutes. Nitrile or butyl rubber gloves are mandatory to keep the potent chemicals in resins and solvents off your skin.

Tools for Preparation and Application

Once your safety is sorted, you can get to the tools that do the real work. The quality of your prep work has a direct line to the strength of your repair, and the right tools make that prep infinitely easier.

Your new best friend for this job is an angle grinder with a 36-grit sanding disc. This is the workhorse you'll use to grind away damaged material and create that crucial "V" groove for your patch. For tighter spots or more delicate work, a rotary tool (like a Dremel) with various grinding bits gives you the precision you need.

You'll also need a few basic application tools:

• Disposable paint brushes and small plastic squeegees for spreading resin.
• Mixing cups and sticks to get your resin and hardener blended correctly.
• A digital scale—this is a lifesaver for nailing epoxy ratios every time.
• A small laminating roller to press out air bubbles and ensure a strong, void-free repair.

If you’re tackling a bigger project or doing repairs on the go, a good mobile workshop solution can be a game-changer. It keeps everything organized and within arm's reach, whether you're working in the marina or your driveway.

Choosing Your Repair Materials

This is where so many DIY repairs fall apart. Picking the right resin and fiberglass isn't just a matter of preference; it's about chemistry and ensuring your boat stays in one piece.

The single biggest decision you'll make is choosing between polyester and epoxy resin. Using the wrong one can lead to a weak bond and certain failure, especially on a boat that has been previously repaired.

For most situations, epoxy resin is simply the superior choice. It has incredible adhesion, strength, and waterproofing capabilities. Crucially, it will bond reliably to old polyester resin—something polyester resin cannot do. Polyester resin is cheaper, sure, but it's really best left for new construction or repairs on older boats you know for a fact were built with polyester.

To help you decide, here’s a quick breakdown of the two main players in the resin game.

Epoxy vs. Polyester Resin: Which Is Right for Your Repair?

Feature	Epoxy Resin	Polyester Resin
Adhesion	Excellent. Bonds to almost anything, including old polyester.	Good, but only bonds well to fresh polyester.
Strength	Very high tensile and flexural strength. Creates a tough, durable repair.	Decent strength but more brittle than epoxy.
Water Resistance	Superior. Highly resistant to water permeation (blistering).	Less resistant. Can absorb water over time if not sealed properly.
Shrinkage	Very low shrinkage during curing, leading to less stress on the bond.	Higher shrinkage rate, which can weaken the bond.
Cost	More expensive.	Significantly cheaper.
Working Time	Longer working time, giving you more time to get things right.	Shorter working time (gel time), requiring you to work faster.

While epoxy costs more upfront, its reliability and strength often make it the smarter investment for a repair you only want to do once.

Finally, you need the fiberglass reinforcement itself.

• Fiberglass Mat: This looks like a jumble of short, randomly oriented fibers. It's great for building up thickness fast but doesn't have much directional strength.
• Fiberglass Cloth: This is a woven fabric, much like a piece of cloth, and it provides high tensile strength. It’s the backbone of any structural repair.
• Woven Roving: A very heavy, coarse fabric used to build up serious thickness and strength for major structural jobs.

For most common cracks, using a combination of fiberglass cloth for strength and a layer of mat for bulk will give you a professional-grade patch that’s built to last.

Mastering Surface Preparation for a Permanent Bond

The long-term success of your fiberglass repair is decided long before you even think about mixing resin. Getting the surface prep right isn't just a step in the process; it's the entire foundation for a permanent, professional-quality bond.

I've seen it time and again: rushing this stage is the number one reason DIY repairs fail. It almost always leads to patches that delaminate, crack again, or just fall out over time.

Think of it like painting a greasy wall. You wouldn't expect the paint to stick, right? The same logic applies here, but the stakes are much higher. The goal is to create a clean, coarse, and correctly shaped surface that the new resin and fiberglass can grab onto, forming a powerful physical and chemical lock.

Grinding the Crack into a V-Groove

One of the most common—and disastrous—mistakes is to simply fill a crack with resin. That's like putting a bandage on a broken bone. Without creating a proper mechanical lock for the new material, the filler will just crack again along the same line as the hull continues to flex.

To prevent this from happening, you have to grind the crack out into a distinct "V" shape. This technique dramatically increases the surface area for the new material to bond with, creating a repair that distributes stress instead of concentrating it on a weak point.

Your best tool for this job is an angle grinder armed with a 36-grit disc.

• Start grinding directly along the crack, following its entire length to remove all the damaged, fractured material.
• Create the "V" by angling your grinder to remove material from both sides of the crack. You're aiming for a wide, shallow "V" or saucer shape. Don't be timid here—you need to expose fresh, undamaged laminate.
• Check your depth and keep grinding until you're completely past the visible crack and looking at clean, solid fiberglass.

The 12-to-1 Rule of Thumb
For a structural repair, a solid guideline is the 12-to-1 ratio. This means the tapered area on each side of the crack should be at least 12 times as wide as the fiberglass laminate is thick. So, for a 1/4-inch thick hull, you'd want a 3-inch wide taper on either side of the center line.

This wide, beveled edge is absolutely crucial. It allows you to layer in new fiberglass patches of increasing size, which effectively weaves the repair into the existing hull for maximum strength.

The Non-Negotiable Acetone Wipe-Down

Once you’ve finished grinding and vacuumed up the dust, the area might look clean, but it's not. It’s covered in invisible contaminants like wax, oil, mold release agents from the factory, and even oils from your own skin. All these things create a barrier that will ruin your bond.

This is where acetone comes in. It’s a powerful solvent that flashes off quickly, pulling these contaminants right out of the fiberglass pores.

• First Wipe: Liberally wet a clean, lint-free rag with acetone. Wipe down the entire repair area, making sure to extend several inches beyond where you ground.
• Second Wipe: Immediately follow up with a second, dry, clean rag to lift the dissolved gunk off the surface before the acetone evaporates and redeposits it.

Never, ever skip this step. An acetone wipe-down ensures you're bonding to pure fiberglass, not a hidden layer of grime. And for keeping the rest of your boat looking its best, check out our guide on choosing the best fiberglass boat cleaner for routine maintenance.

These principles of meticulous surface prep are universal. Fiberglass reinforced plastics (FRP) are vital in industries from automotive to major infrastructure, where repairing cracked fiberglass is key to safety. The standard process always involves detailed surface prep, resin application, and proper curing to restore performance. Taking the time to master these prep stages on your boat will give you a repair that’s just as reliable.

Laminating a Strong and Seamless Fiberglass Patch

Alright, with the damaged area ground down and perfectly prepped, we get to the fun part—actually building the repair. This is where you take a cracked, weak spot and turn it back into a solid, seamless piece of your hull. Laminating isn't rocket science, but you do need to be precise, especially when mixing your resin and laying down the fiberglass.

The entire strength of your repair hinges on getting the chemistry right. I've seen it happen: a small mistake in the resin-to-hardener ratio leaves you with a patch that stays sticky and weak forever. The only fix is to grind it all out and start over. Let's avoid that.

Nailing the Resin Mix Every Time

Whether you're working with epoxy or polyester, that mixing ratio on the can isn't a suggestion—it's a hard and fast rule. Epoxy, in particular, is unforgiving. Eyeballing the amounts is a surefire way to ruin your afternoon.

For dead-on accuracy, a digital scale is your best friend.

1. Pop your mixing cup on the scale and hit the "tare" or "zero" button.
2. Pour in the right amount of resin (Part A) by weight.
3. Zero the scale out again, then add the exact amount of hardener (Part B).

Now, mix like you mean it. Scrape the sides and bottom of the cup constantly for at least two full minutes. Any unmixed streaks are just weak spots waiting to happen. And remember, only mix as much resin as you can realistically use within its "pot life," which is usually 15-20 minutes for most marine epoxies.

Layering Fiberglass for Superior Strength

The secret to a bomb-proof repair is in how you layer the fiberglass cloth. You're going to start with your smallest piece and work your way up to the largest. This method creates a patch that blends perfectly with those beveled edges you ground out earlier.

• Cut Your Pieces First: Before you even think about mixing resin, pre-cut all your fiberglass cloth. The first piece should be just big enough to fit the very bottom of your V-groove. Each piece after that should be about an inch bigger in every direction.
• Wetting Out: Grab a brush and paint a thin, even coat of your mixed resin onto the prepared surface. Think of this as a primer or "tack coat" that helps the first layer of cloth grab on.
• Applying the First Layer: Lay your smallest piece of cloth into the wet resin. Use a disposable brush to gently tap and stipple more resin into the cloth until it becomes totally transparent. This is what we call "wetting out."

You’ll know the cloth is fully saturated when it goes from opaque white to completely clear. Any white spots that remain are dry areas that will create weaknesses in the laminate.

Compacting the Layers and Removing Air

As you add each new layer of fiberglass, your main goal is to create a dense, solid laminate with no voids. Trapped air bubbles are the enemy. They create little pockets of weakness that can compromise the whole repair. This is where a laminating roller becomes the most important tool in your kit.

After you lay down each wetted-out piece of cloth, gently roll over it with your laminating roller. Use firm, even pressure. You’ll literally see the air bubbles and excess resin getting squeezed out to the sides. This compacts the fibers and ensures a super-tight bond between each layer.

Keep this process going—apply a layer, wet it out, and roll it—until your patch is built up just a little higher than the surrounding hull surface. That extra material is intentional; you'll need it for the final fairing and sanding stages.

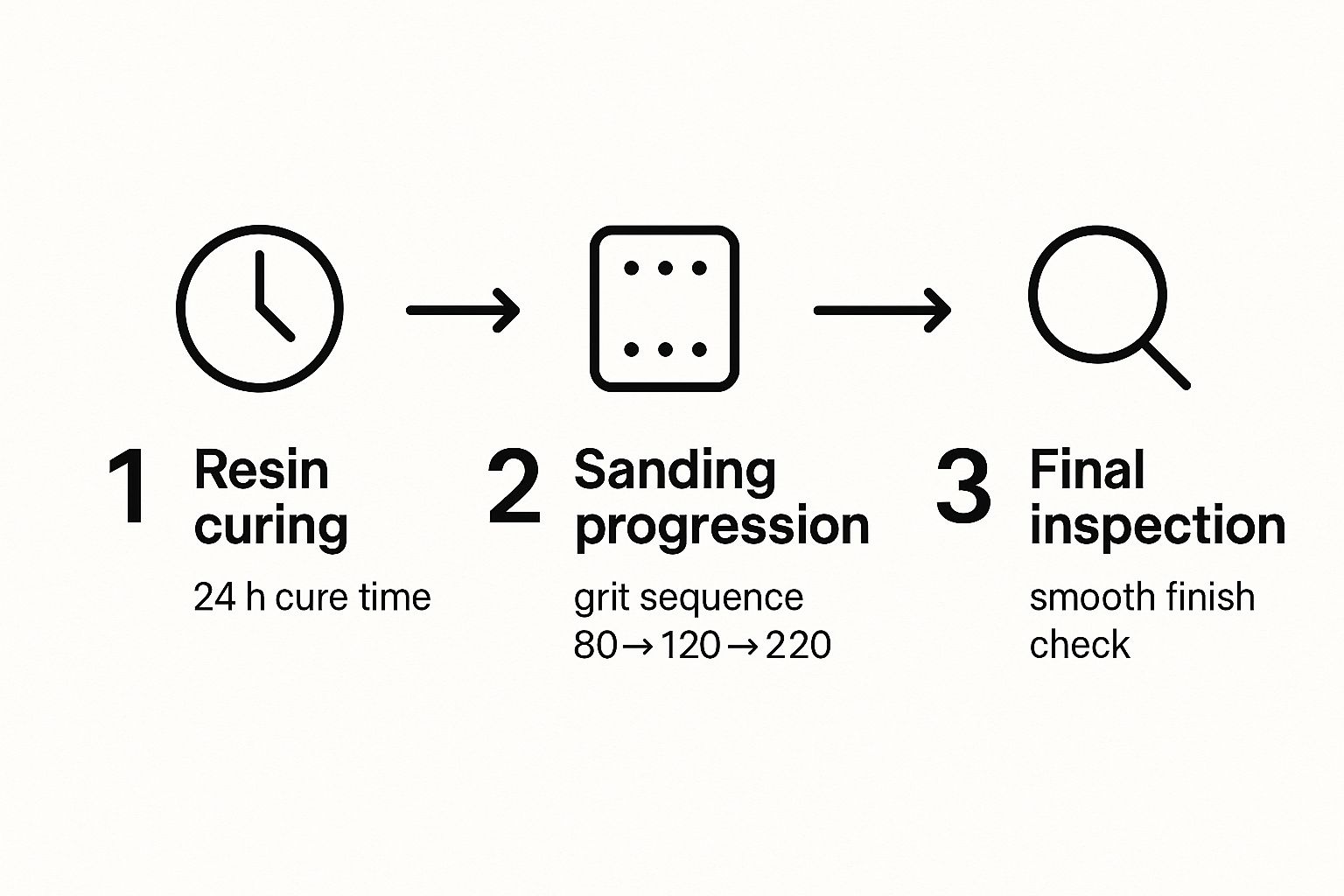

The image below gives you a good idea of the curing and sanding process that comes next.

This really highlights the patience you'll need, showing the full day required for curing before you can even start the methodical sanding that gets you that flawless finish.

Knowing how to fix cracked fiberglass is a valuable skill, especially as the material becomes more common. The worldwide fiberglass market is on track to hit USD 48.75 billion by 2032, largely because of its use in marine and other industries where you just can't compromise on strength.

Once your final layer is on and compacted, it's time to step back and let it cure fully without being disturbed. A full cure can take 24 hours or more, depending on the resin system and the temperature in your workspace. Once it's hard as a rock, you're ready for the finishing work that will make the repair completely disappear. After this structural work, it's all about cosmetics, and our guide on boat gelcoat repair can walk you through making the surface look brand new.

Achieving an Invisible Professional Finish

A structurally sound repair is great, but a repair that completely disappears is the mark of a true craftsman. This final stage is all about the cosmetic work that makes your strong patch invisible. We're going to bridge the gap between a lumpy but solid repair and a flawless surface that blends right into your boat’s hull.

This process is called fairing, and it's where patience really pays off. It involves applying a filler, shaping it to perfection, and then putting on a final protective coat that matches the rest of the boat. It’s definitely more about finesse than brute force.

The Art of Fairing Your Repair

Once your laminated patch has fully cured, the first thing to do is knock down any high spots. A quick sanding with some coarse 80-grit paper will handle that. Now you're ready to apply a marine-grade fairing compound. These are usually two-part epoxy fillers that are thick, won't sag, and are designed to be sanded down easily.

Go ahead and mix a small batch of the filler, following the manufacturer's directions to the letter. Using a flexible plastic spreader, apply a thin, smooth coat over the entire repair, feathering it out slightly onto the surrounding original surface. The goal here is just to fill in any low spots or pinholes left in the fiberglass.

Don’t try to get it perfect on the first pass. It’s much better to apply several thin coats, sanding between each one, than to glob on one thick coat that will be a nightmare to sand smooth.

Let each layer of filler cure completely. Once it’s rock hard, you can move on to the most critical part: shaping it to match the hull’s original lines.

Shaping with a Longboard Sander

For fairing, your secret weapon is a longboard sander. It's a simple tool—just a long, semi-flexible board that holds a sheet of sandpaper—but it makes all the difference. A common mistake is using a regular palm sander or a small block, which almost always creates an uneven, wavy finish because it just follows every little dip and bump.

A longboard, on the other hand, bridges right over the low spots and only sands down the high spots. This is the key to getting a truly flat, fair surface.

• Start with 80-grit sandpaper loaded onto your longboard.
• Sand in a diagonal "X" pattern across the whole repair area. This cross-hatching technique ensures you're removing material evenly and keeps you from accidentally sanding grooves into the surface.
• Feel the surface with your hand often. Your fingertips are incredibly sensitive and can pick up on minor imperfections your eyes might miss.

After that initial shaping, you'll probably see a few low spots that need more attention. Just wipe the area clean, apply another thin skim coat of filler only in those areas, let it cure, and sand it again. Keep repeating this process until the entire repair feels perfectly smooth and flows into the hull's original contours with no noticeable transition.

Perfecting the Surface with Finer Grits

Once the shape is perfect, it’s time to get rid of the scratches left by that coarse 80-grit paper. You'll do this by working your way up through progressively finer grits of sandpaper, with each new grit removing the scratches left by the previous one.

1. Switch to 120-grit sandpaper and go over the entire area again to smooth it out.
2. Move on to 220-grit sandpaper to create a fine, smooth surface that’s ready for primer.
3. Finish with a 320 or 400-grit wet sand if you want an exceptionally smooth base before you start painting.

This methodical sanding progression is what creates that glass-smooth finish you need for a professional-looking topcoat.

Applying Primer and the Final Topcoat

With the surface faired and sanded to perfection, the final step is to seal and protect all your hard work. A high-build marine epoxy primer is essential here. It seals the porous filler, creates an excellent bonding surface for the paint, and helps fill in any microscopic scratches that are still there.

Apply two or three thin coats of primer, giving it a light sanding with 400-grit paper between each coat.

Finally, you can apply your color-matched gelcoat or a two-part polyurethane marine paint. The real key to an invisible repair is getting a perfect color match, which might even require a professional tinting. Apply your topcoat following the manufacturer’s instructions, and once it has cured, your repair should be completely undetectable. Taking a little extra time for a final polish and wax will not only make it shine but also protect it for seasons to come. For tips on keeping that new finish looking great, you can learn more about how to properly wax your boat in our complete guide.

Got Questions About Fiberglass Repair? Let's Get Them Answered.

Even the best set of instructions can't cover every weird situation you'll run into when working with fiberglass. It's just the nature of the beast, especially when you're battling the elements in a marine environment. Having solid answers to the most common snags can turn a project from a total headache into a repair you can be proud of.

Think of this as your go-to guide for troubleshooting the stuff that comes up most often. We'll tackle everything from underwater fixes to those maddening spider cracks, giving you the straight-up advice you need to get the job done right.

Can I Repair Fiberglass Below the Waterline?

You sure can, but this is one area where you absolutely cannot cut corners on materials. For any patch that's going to live underwater, you must use epoxy resin. Period. It creates a rock-solid, waterproof barrier that polyester resin just can't touch.

Polyester resin is slightly porous and can, over time, soak up tiny amounts of water. This leads to osmotic blisters and, eventually, a failed repair. Epoxy forms a complete shield; polyester is more like a very, very dense sponge.

Before you even think about mixing your resin, the repair area has to be completely, positively, bone-dry. This might mean hitting it with a heat lamp and having some patience. Once you apply the epoxy, give it the full cure time listed on the product's data sheet—and know that cool or damp weather can slow that process down considerably.

How Do I Fix Those Annoying Spider Cracks in the Gelcoat?

Ah, the dreaded spider cracks. We've all seen them—those fine, web-like fractures in the gelcoat. The good news is they're almost always cosmetic, not structural. Fixing them is more about careful, detailed work than it is about heavy grinding.

• Open Them Up: Get a Dremel or a similar rotary tool with a small, V-shaped bit. Your goal is to carefully grind out each little crack, creating a shallow channel for the new filler to bite into.
• A Deep Clean is Crucial: Use a rag soaked in acetone to meticulously clean out the grooves and the surrounding area. You need to remove every last speck of dust for a good bond.
• Fill and Let it Cure: Use a color-matched gelcoat paste to fill the channels you created. Overfill them just a tiny bit, as the paste will shrink slightly as it cures. Then, walk away and let it cure completely.
• Sand and Polish to Perfection: This is where the magic happens. Start wet-sanding with 400-grit sandpaper and work your way up through progressively finer grits: 800, then 1200, and maybe even 1500-grit. Your goal is to get the repair perfectly flush with the original gelcoat. A final buff with a good polishing compound will bring back that factory shine.

What's the Best Temperature for Working with Resin?

Resin is a chemical, and its curing process is massively influenced by temperature. You'll get the best results in warm, dry weather. The sweet spot for most epoxy and polyester resins is right around 70-80°F (21-27°C).

Trying to work when it's below 60°F (15°C) is asking for trouble. The chemical reaction slows to a crawl, and you can end up with a weak, rubbery bond that never fully hardens.

High humidity is your other big enemy. Moisture in the air can mess with the curing process, sometimes leaving a tacky or cloudy film on the surface known as "amine blush," which is a common issue with epoxies. Always, always read the technical data sheet for your specific product—it will tell you the ideal working range for both temperature and humidity.

Of course, some damage goes beyond a simple DIY fix and is part of a much bigger project. In those cases, it helps in understanding the broader scope of bodywork repairs and seeing what the pros can handle.

What's the Difference Between Fiberglass Mat and Cloth?

This is a great question. Choosing the right reinforcement is just as critical as choosing the right resin. They're both made of glass fibers, but how they're put together makes them suitable for very different jobs.

Fiberglass Mat, or chopped strand mat, is made of short fibers randomly scattered and held together by a binder. It’s perfect for building up thickness in a hurry and drapes easily over complex curves. The trade-off? It’s not nearly as strong as woven cloth. It works best with polyester resin, as the styrene in the resin dissolves the binder and allows the mat to get fully saturated.

Fiberglass Cloth, on the other hand, is a woven fabric. That interlocking structure gives it incredible tensile strength, making it the go-to for structural repairs where strength is everything. Often, the best repair uses a combination of the two: use layers of strong cloth for integrity, with a layer of mat sandwiched in between to add bulk and ensure a solid, void-free bond.

---
