Guide to submersible bilge pump: Keep Your Boat Safe, Dry, and Ready

A submersible bilge pump is one of those pieces of gear you hope you never need, but you're incredibly thankful for when you do. It's a fully sealed unit designed to sit right in the lowest point of your boat's hull—the bilge—and its one job is to get water out. Fast.

Think of it as your boat's automated first mate, always on watch. Whether it's from a bit of spray over the gunwales, a heavy downpour, or a small leak, this pump kicks into gear and sends that unwanted water packing before it can become a real headache.

The Unsung Hero in Your Hull

Let’s be honest: every boat takes on some water. It's just a fact of life on the water. A submersible bilge pump is your single most important defense against this. Unlike other pump designs, the whole unit—motor and all—is built to live underwater. This makes it incredibly good at its job of moving water out before it ever becomes a serious problem.

This little device works away quietly in the background, out of sight and out of mind. But without it, even a minor issue like a leaky through-hull fitting could turn into a major disaster. A rising bilge can affect your boat's stability, ruin onboard electrical systems, and in a worst-case scenario, put you in a position no boater ever wants to face. Having a reliable bilge pump system isn't just a good idea; it’s non-negotiable for protecting your boat and keeping everyone on board safe.

Why Submersible Pumps Dominate the Market

It's not just us saying it—the numbers back it up. Submersible bilge pumps are the go-to choice for a reason, leading the global market because they’re just so darn effective and reliable. In North America alone, the market is valued at a whopping USD 650 million. This is hardly surprising when you consider there are over 12 million registered recreational boats out there, all needing to meet safety regulations that make effective bilge systems essential.

A reliable bilge pump isn't a luxury; it's the heart of your boat's safety system. It stands between a minor inconvenience and a catastrophic failure, working silently to keep you afloat.

Before we dive deeper, let's break down the core features of a submersible pump in a simple table. This will give you a quick snapshot of what makes them tick.

Submersible Bilge Pump Key Features at a Glance

Feature	Description	Why It Matters
Fully Submersible Design	The entire unit, including the motor, is hermetically sealed to operate underwater.	This allows for direct placement in the bilge, where water collects first, ensuring maximum efficiency and immediate response.
High Flow Rate (GPH)	Measured in Gallons Per Hour, indicating how much water the pump can move.	Higher GPH means faster water removal, which is critical in an emergency. It's the primary performance metric.
Integrated Float Switch	An automatic switch that activates the pump when water levels rise to a set point.	Provides "set-it-and-forget-it" protection, turning the pump on exactly when needed without manual intervention.
Compact and Low Profile	Designed to fit in the tight, often awkward spaces at the lowest point of the hull.	Ensures the pump can be installed correctly at the very bottom of the bilge for complete water removal.
Durable Materials	Constructed from corrosion-resistant materials like marine-grade plastics and stainless steel.	Guarantees longevity and reliable performance in the harsh saltwater and freshwater marine environment.

This table covers the basics, showing why these pumps are trusted by millions of boat owners to keep their vessels dry and safe.

A Critical Component of Boat Care

Getting a handle on how your submersible bilge pump works is a cornerstone of good boat ownership. It’s a key piece of the puzzle when it comes to keeping your vessel in top shape. For more general boat care advice, checking out broader resources can help you see how all the systems on your boat work together.

This foundational knowledge helps you appreciate why every single component matters, especially your bilge pump. To get a more detailed breakdown, you can also explore our guide on the ins and outs of how a https://betterboat.com/blogs/boating/boat-bilge-pump operates.

How Your Submersible Bilge Pump Works

To really get a feel for your submersible bilge pump, it helps to know what's going on under the floorboards. It's not some hyper-complex piece of engineering; its operation is actually pretty simple and incredibly effective.

Think of it as a small, waterproof sump pump built tough for the marine world inside your boat's hull.

At its core, the pump is just four key parts working together: a sealed motor, an impeller, an intake screen, and an outlet port. The real action starts when the motor spins the impeller, which acts like a tiny but powerful fan blade underwater. This spinning creates a low-pressure zone—basically, a vacuum—that sucks water from the bilge right through the intake screen.

Once the water is pulled in, the impeller blades grab it and forcefully shove it toward the outlet port. From there, it’s sent packing through a discharge hose and safely overboard. Simple as that.

The Brains of the Operation: The Float Switch

While the motor and impeller are the muscle, the float switch is the brain. This unassuming little device is what makes an automatic submersible bilge pump so dang reliable. It’s just a buoyant little switch that rises and falls with the water level in your bilge.

When enough water collects to lift the float to a set height—usually only a couple of inches—it clicks an internal switch on. This closes the electrical circuit, sending juice to the pump motor, which kicks on and starts pumping. As the water level drops, the float lowers until the switch clicks off, cutting power to the pump.

This automatic function is hands-down the pump's most critical safety feature. It means your boat is protected from taking on water even when you're not around, standing guard against rain, small leaks, or waves.

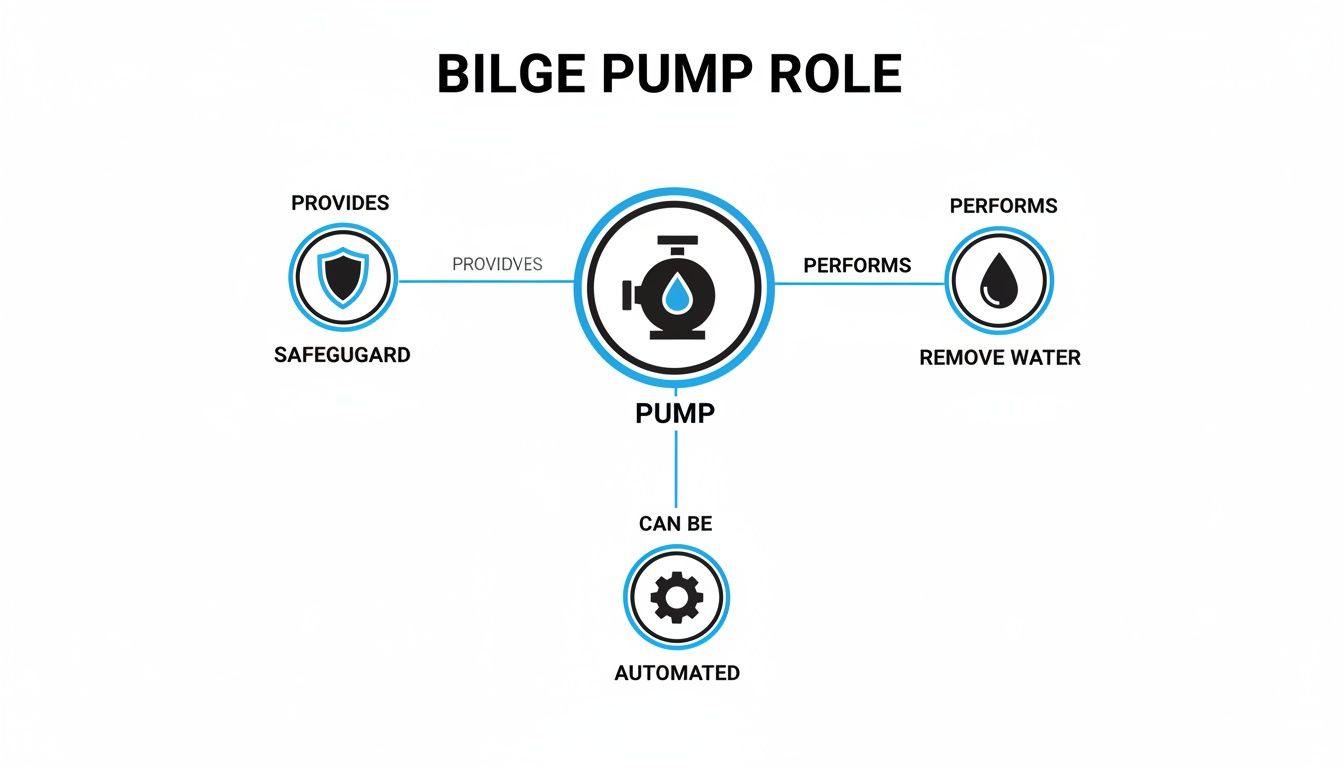

This diagram really clarifies how the pump's main jobs—protecting the boat, moving water, and doing it all automatically—are linked together.

As you can see, a bilge pump isn't just about bailing water; it’s a full-on automated system designed to protect your investment.

Why Automatic Systems Are a Big Deal

The sheer reliability of these systems has made them a cornerstone of modern boating safety. It's no surprise that automatic submersible bilge pumps are a huge growth area, with the global market expected to double to USD 2.1 billion by 2032.

They're especially popular in recreational boats, making up 40% of all installations. Why? Because their built-in float switches can slash the risk of flooding by an incredible 85%.

Getting a handle on how this all works helps you make smarter choices when buying or maintaining your pump. For a much deeper dive, this comprehensive guide on automatic bilge pumps is a fantastic resource that really breaks down their importance.

Sometimes, seeing is believing. To watch these parts work in real-time, check out our video review of the Better Boat Automatic Bilge Pump, where we show you exactly how it all comes together.

Choosing the Right Submersible Bilge Pump

Picking the right submersible bilge pump is easily one of the most critical safety decisions you'll make for your boat. This isn't about grabbing the biggest, most expensive pump off the shelf. It’s about making a smart match between the pump's real-world capabilities and what your specific vessel actually needs.

Get it right, and you'll have an efficient pump that protects your electrical system and gives you reliable performance when the water starts rising. Get it wrong, and you could end up with a pump that can't keep up in an emergency or, just as bad, one that burns itself out by cycling on and off too frequently.

Let's walk through a practical checklist, breaking down the key specs so you can choose a pump that brings true peace of mind to your time on the water.

What Does Gallons Per Hour Really Mean?

The first number you’ll notice on any pump's box is its Gallons Per Hour (GPH) rating. This tells you the absolute maximum amount of water the pump can move under perfect, lab-style conditions—something you'll never encounter on your boat.

Think of a pump's GPH rating like a car's top speed. A supercar might be capable of hitting 200 mph, but you'll never reach that on a winding road with hills and traffic. Factors like how high the pump has to push water and the length of the hose will always reduce its real-world output.

The goal isn't just to buy the highest GPH number you can find. An oversized pump can "short cycle"—flicking on and off every few seconds in a small amount of water—which is a great way to burn out the motor. On the flip side, an undersized pump is a serious liability, as it won't be able to keep up when you need it most.

Here's a handy starting point for figuring out the GPH you should be looking for.

Recommended Bilge Pump GPH by Boat Length

A guideline for selecting the appropriate pump capacity (Gallons Per Hour) based on the length of your boat. These are minimum recommendations for a primary pump.

Boat Length	Minimum GPH for Primary Pump	Recommended GPH for Backup Pump
Under 20 ft.	500 GPH	750 GPH
20 ft. to 25 ft.	1,000 GPH	1,500 GPH
26 ft. to 35 ft.	2,000 GPH	3,700 GPH
36 ft. and Over	4,000 GPH+	4,000 GPH+

Remember, these are just minimums. If you boat offshore or in rough conditions, stepping up to the next size is always a wise investment in safety.

Understanding Head Height and Its Impact

The single biggest factor that slashes a pump's GPH rating is head height. Simply put, this is the vertical distance the pump has to push water, from its outlet up to the thru-hull fitting where it exits the boat.

Every foot of head height makes gravity fight back harder, and your pump's flow rate drops—often dramatically. For example, a 2,000 GPH pump might only push 1,300 GPH with just three feet of head height. Always look for the manufacturer's performance chart on the box or online. This will show you exactly what to expect in your boat.

A pump's GPH rating is its potential, but head height determines its reality. Always calculate your head height before choosing a pump to ensure it has enough power to do the job effectively.

To ensure you are well-equipped, explore our selection of reliable and high-performance submersible bilge pumps designed to meet the demands of any vessel.

Power, Switches, and Materials

Beyond raw pumping power, a few other details will steer you toward the right choice.

• Power Requirements (12V vs. 24V): The vast majority of recreational boats run on a 12-volt DC electrical system, so 12V pumps are the default choice. Larger yachts and commercial vessels often use 24-volt systems, which can run bigger pumps more efficiently. The rule is simple: match the pump's voltage to your boat's system.

• Automatic vs. Manual Operation: An automatic pump has a float switch or electronic sensor that kicks it on whenever water rises to a certain level. This is your first line of defense, offering around-the-clock protection. A manual pump only runs when you flip a switch. The best and safest setup combines both: an automatic pump with a manual override switch at the helm, giving you both convenience and ultimate control.

• Build Quality and Materials: The bilge is a nasty place. Your pump needs to be tough enough to survive down there. Look for models with corrosion-resistant parts like stainless steel motor shafts and rugged, impact-resistant thermoplastic housings. Quality materials mean your pump will shrug off moisture, fuel, and oil for years of dependable service.

The technology behind these essential pumps is part of a massive global industry focused on moving water efficiently. Valued at USD 16.32 billion, the worldwide submersible pump market is expected to reach USD 27.74 billion by 2032. This growth is driven by the demand for devices like bilge pumps, which offer 20-30% higher energy efficiency and are crucial for safety on the water. You can learn more about these market trends and their implications.

A Practical Guide to Installation

Picking out the right submersible bilge pump is only half the battle. A proper installation is what turns that pump into a safety system you can actually count on. A top-of-the-line pump installed incorrectly can fail when you need it most, leaving you in a serious bind.

This guide will walk you through the installation process, pointing out the critical steps and common mistakes to sidestep. Getting these details right from the start means your pump will work like a charm, giving you peace of mind every time you cast off the lines.

Finding the Optimal Location

First things first: location, location, location. Your pump needs to be mounted at the absolute lowest point in the bilge where water is going to pool. This is non-negotiable if you want it to get as much water out as possible.

Before you even think about drilling, take a look at how your boat sits in the water. Water always finds its way to one specific spot, and it's not always dead center. Once you've found that low point, make sure the pump can sit perfectly flat without rocking. Critically, the float switch needs plenty of room to move up and down without getting snagged on anything.

Key Takeaway: The success of your entire bilge system depends on getting the placement right. Not sure where the lowest point is? Pour a bucket of water into the bilge and watch where it settles. That’s your spot.

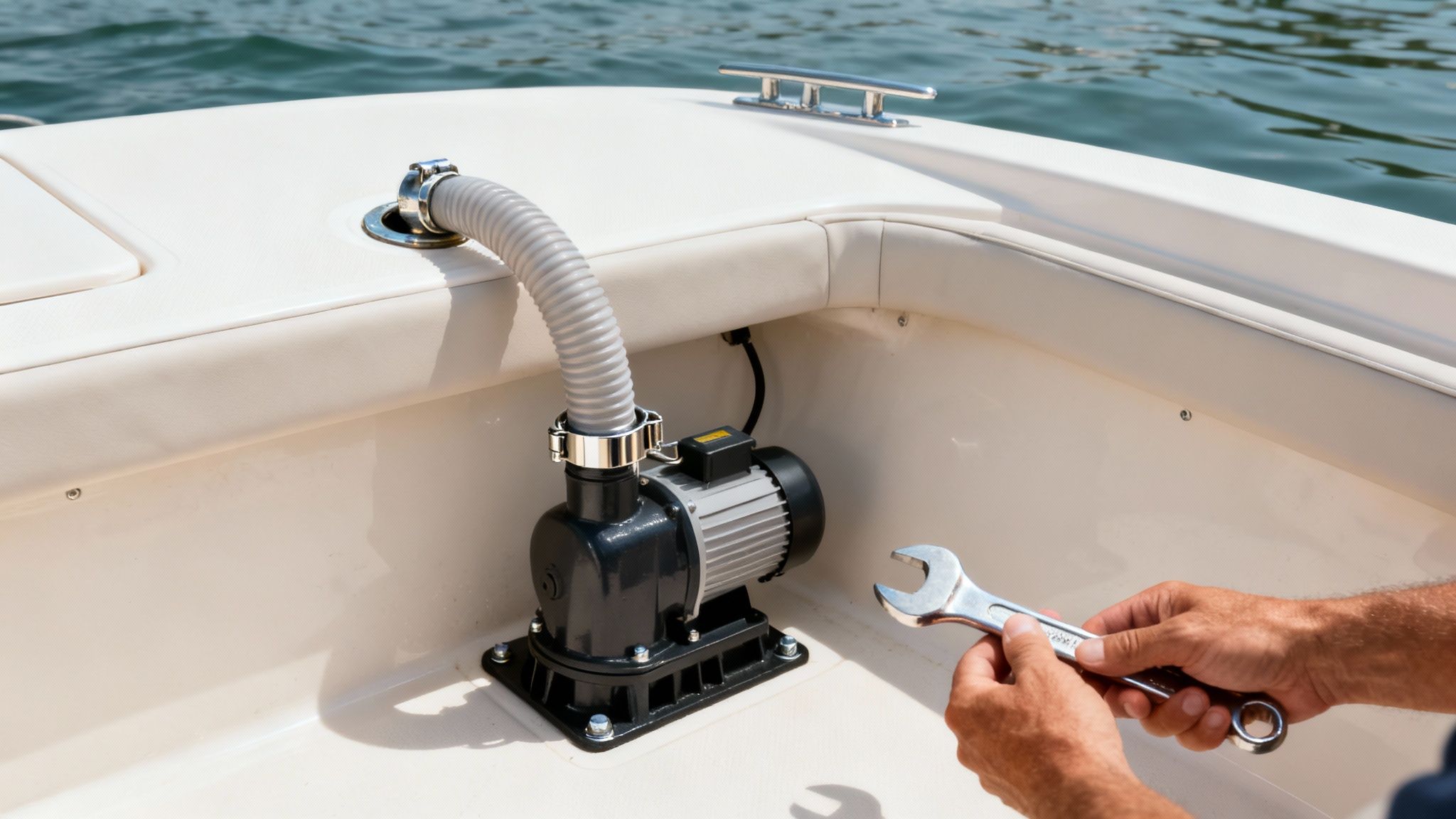

Mounting the Pump and Connecting the Hose

Once you’ve nailed down the perfect location, it's time to mount the pump base to the hull. Use marine-grade stainless steel screws—no shortcuts here. Apply a quality marine sealant to the screw holes to make sure you're not creating a new leak while fixing a potential one.

Next up is the discharge hose, a step where a lot of well-intentioned boaters go wrong. The wrong kind of hose can choke your pump's performance before it even gets going.

Common Hose Mistakes to Avoid:

• Using Corrugated Hose: It might be flexible, but the ridges inside create turbulence that can slash your pump's output by as much as 30%. Always, always go for a smooth-bore hose.
• Creating Dips or Sags: The hose should run in a continuous, smooth uphill line to the thru-hull fitting. Any "valleys" in the hose will trap water. In cold climates, that water can freeze and crack the hose; otherwise, it will just slosh back into the bilge.
• Using Cheap Clamps: Use two high-quality, marine-grade stainless steel hose clamps at every connection. You don't want that hose popping off when the pump is working its hardest.

For a bulletproof and leak-free setup, we can't recommend a complete installation kit enough. A good bilge pump hose kit comes with the right smooth-bore hose and tough stainless clamps, taking all the guesswork out of the job. Lastly, connect the hose to a thru-hull fitting that's well above the waterline, even when your boat is heeled over.

Wiring for Reliability and Safety

Let's be clear: sketchy wiring has no place in a bilge. All your wiring and connections must be marine-grade to fight off the constant moisture and inevitable corrosion.

The best and most common setup is to wire the automatic float switch directly to the battery (with an inline fuse, of course) and run the manual override switch to your helm. This two-pronged approach ensures the automatic function is always armed and ready, even if you forget to flip your main battery switch at the dock.

Essential Wiring Best Practices:

• Run all wiring as high as you can get it, securing it well away from moving parts or sharp edges that could chafe it over time.
• Use waterproof, heat-shrink connectors for all splices. This creates a seal that corrosion can't penetrate.
• Always install the right-sized fuse on the positive wire, as close to the battery as possible. This is your number one defense against pump damage and electrical fires.

Follow these installation steps carefully, and you’ll have a bilge system that’s robust and dependable. A properly installed pump is one of the smartest investments you can make for your boat's safety and your own sanity.

Essential Maintenance and Troubleshooting

Think of your submersible bilge pump as a silent guardian. It’s a critical piece of safety gear, but just like a spare tire, you don't want to find out it's failed when you desperately need it.

The good news? Keeping your pump system in top shape is surprisingly easy. A simple routine of monthly and annual checks can help you spot small problems long before they turn into a real crisis on the water. It’s all about being proactive.

Your Monthly Maintenance Checklist

Set aside ten minutes each month for a quick health check. These simple steps will make a huge difference in your pump's reliability.

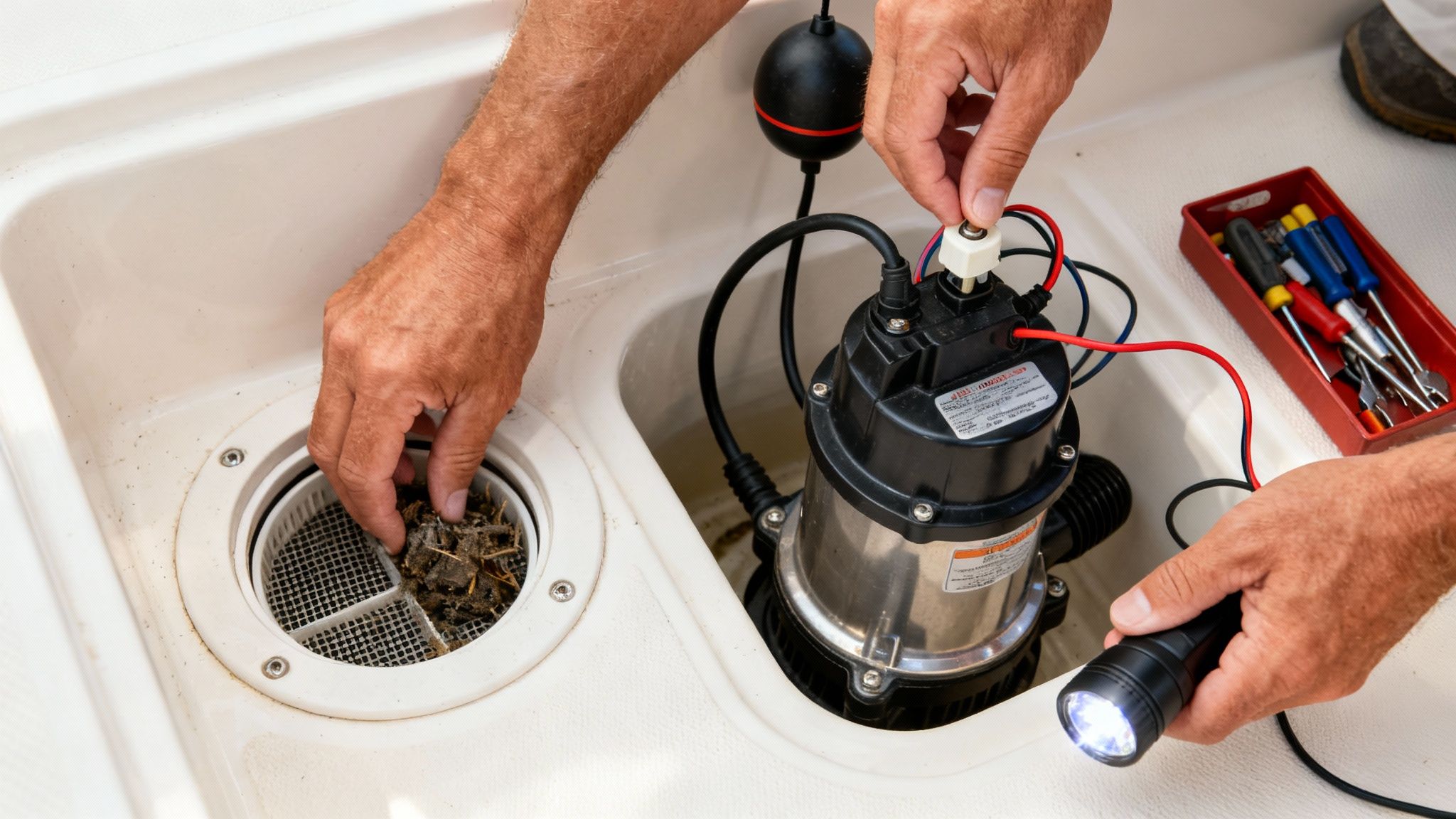

• Clear the Intake Screen: Bilge water is a nasty soup of leaves, fishing line, stray plastic bits, and who knows what else. Pop off the pump's strainer basket and clear out anything that could cause a clog.

• Test the Float Switch Manually: Don't just trust the automatic function. Get in there and lift the float switch arm. You should hear a satisfying click as the pump kicks on. This little test confirms the switch isn't stuck and that everything is responding correctly.

• Inspect Hoses and Clamps: Give the discharge hose a quick once-over. You're looking for cracks, kinks, or any soft spots that could burst under pressure. While you're at it, make sure the stainless steel hose clamps are tight and not showing signs of heavy corrosion.

• Run a Water Test: After you've cleared the intake, pour a bucket of fresh water into the bilge. This not only proves the pump is moving water but also helps flush out any lingering grime from the pump housing and hose.

Key Annual Procedures

Once a year, it's time to go a little deeper and fight back against corrosion, the slow and silent killer of marine electronics. This is especially important if you're boating in saltwater.

Your main job is to hunt down any signs of corrosion—that ugly green or white powder—on all electrical connections. Disconnect the wires from the pump and switch, give the terminals a good cleaning with a wire brush, and apply a bit of dielectric grease before reconnecting them. This one step can prevent the electrical resistance that can starve your pump for power or cause it to fail completely.

A few minutes of preventative maintenance is worth hours of frantic troubleshooting during an emergency. The number one cause of bilge pump failure isn't the pump itself; it's a neglected part like a clogged intake or a corroded wire.

Keeping this mindset is crucial. For a deeper dive into pump care, check out our guide covering 7 essential tips for maintaining the bilge pump on your boat.

Solving Common Bilge Pump Problems

Even the best-maintained gear can act up. When your pump gives you trouble, a calm, logical approach will help you figure out what's wrong.

Problem 1: The Pump Won’t Turn On

This is the scariest problem, but it’s often a simple fix.

1. Check the Fuse: Always start with the easiest thing. Find the pump's inline fuse and see if it’s blown.
2. Inspect the Wiring: Follow the wires. Make sure the connections at the battery, the helm switch, and the pump itself are all tight and clean.
3. Test the Switch: A bad float switch is a very common culprit. Try flipping the manual override switch on your dashboard. If the pump runs, you've found your problem: the float switch needs to be replaced.

Problem 2: The Pump Runs but Moves No Water

Hearing the motor hum without seeing water shoot out the side means you have a blockage or an airlock.

1. Check for Clogs: The usual suspect is a clogged intake screen or something stuck in the discharge hose.
2. Inspect the Impeller: If the impeller is damaged or broken, the motor will spin freely but won't be able to grab and push water. You may need to open up the pump housing to check it.
3. Clear an Airlock: Air can get trapped in the system, preventing the pump from priming. Sometimes, just cycling the pump on and off a few times is enough to burp the air out.

Problem 3: The Pump Runs Continuously

A pump that won't shut off is a fast track to a dead battery and a burned-out motor.

1. Check the Float Switch: The switch could be physically stuck in the "on" position by debris. Give it a jiggle to see if it frees up.
2. Look for Backflow: If your discharge hose has a low loop without a proper vented loop, water can flow back into the bilge right after the pump shuts off. This little bit of water triggers the switch again, causing an endless cycle.
3. Verify Wiring: It's rare, but funky wiring can cause the pump to run non-stop, especially if the manual and automatic circuits were crossed during installation.

Answering Your Most Common Bilge Pump Questions

Even after you get the hang of how your submersible bilge pump works, there are always a few practical questions that pop up. This section is all about tackling those common head-scratchers, giving you clear, no-nonsense answers so you can feel confident your system is in top shape.

Think of this as your go-to reference. We're covering everything from why your pump seems to have a mind of its own to the right way to wire it for maximum safety. These are the real-world details that make all the difference in keeping your boat dry.

Can I Just Use a Garden Hose for My Bilge Pump?

It might seem like a clever shortcut in a pinch, but hooking up a standard garden hose to your bilge pump is one of the worst things you can do. Most garden hoses are corrugated, and those ridges create a ton of turbulence that can choke your pump's flow, slashing its output by as much as 30%.

Worse yet, they aren't built for a marine environment. The bilge water in your boat often has traces of fuel and oil, which will eat away at a garden hose over time. It'll become brittle, crack, and eventually fail—a disaster waiting to happen. Stick with a proper, smooth-bore bilge hose; it’s the only right choice.

Why Does My Bilge Pump Keep Running for No Reason?

Hearing your pump kick on when the bilge looks bone dry is a classic boat owner puzzle. It almost always points to one of two culprits: a finicky float switch or—more likely—water backflow.

A float switch can get gunked up with debris or simply fail, causing it to get stuck in the "on" position and run your pump nonstop. But the far more common issue is backflow. If your discharge hose has a dip or a "belly" in it, the water you just pumped out will rush back down the hose the second the pump shuts off. That little bit of returning water is often just enough to trip the float switch again, starting a frustrating cycle that will drain your battery fast.

A pump that cycles on and off constantly isn't just an annoyance; it's a warning sign. Track down the cause immediately. Fixing it will save your battery and prevent your pump from burning out, ensuring it’s ready when a real emergency strikes.

How Do I Know If My Submersible Bilge Pump Is Actually Working?

The only way to know for sure is to test it regularly. Don't wait for a heavy downpour to discover a problem. The quickest check is to just reach down and manually lift the float switch arm—the pump should fire up instantly.

For a more complete check-up, pour a few gallons of fresh water into the bilge. This simple action lets you verify three critical things all at once:

• Does the float switch rise with the water and turn the pump on automatically?
• Does the motor sound smooth, without any grinding or struggling noises?
• Is water shooting out of the thru-hull outlet with good force?

Do this quick test once a month. It’s the best peace of mind you can get.

Should My Automatic Bilge Pump Be Wired Directly to the Battery?

Absolutely, yes. For your boat's safety, the automatic side of your pump (the float switch circuit) should be wired directly to the battery, protected by an appropriately sized inline fuse. This setup completely bypasses your main battery cutoff switch at the helm.

This direct wiring is a non-negotiable safety feature. It means your bilge pump is always armed and ready to defend your boat against incoming water, even when you're docked and have turned all the main power off. Your boat shouldn't sink at its mooring just because you forgot to flip a switch.

The manual override switch on your console, however, can be wired through your main switch panel. This gives you the best of both worlds: 24/7 automatic protection and on-demand manual control.

What’s the Difference Between a Centrifugal and a Diaphragm Pump?

When you're talking about submersible bilge pumps, you're almost always talking about centrifugal pumps. They work by using a rapidly spinning impeller to sling water outwards, creating a vacuum that pulls more water in and pushes it out at high volume. They're fantastic at moving lots of relatively clean water, but they aren't great at pushing it very high (they have low "head" pressure).

A diaphragm pump is a totally different beast. It's a positive displacement pump that uses a pulsating rubber diaphragm to suck water in and force it out. These pumps are self-priming, can run dry without getting damaged, and are champs at handling water with debris. Their downside? They have a much lower flow rate (GPH). For the main job of getting water out of your bilge, the centrifugal submersible pump is the undisputed king.

---

Keeping your bilge dry is a cornerstone of boat maintenance, and having the right gear makes all the difference. At Better Boat, we provide a full range of high-quality marine products, from cleaning supplies to essential safety equipment, all designed to make boat ownership easier. Explore our complete collection at https://www.betterboat.com and equip your vessel with products you can trust.
